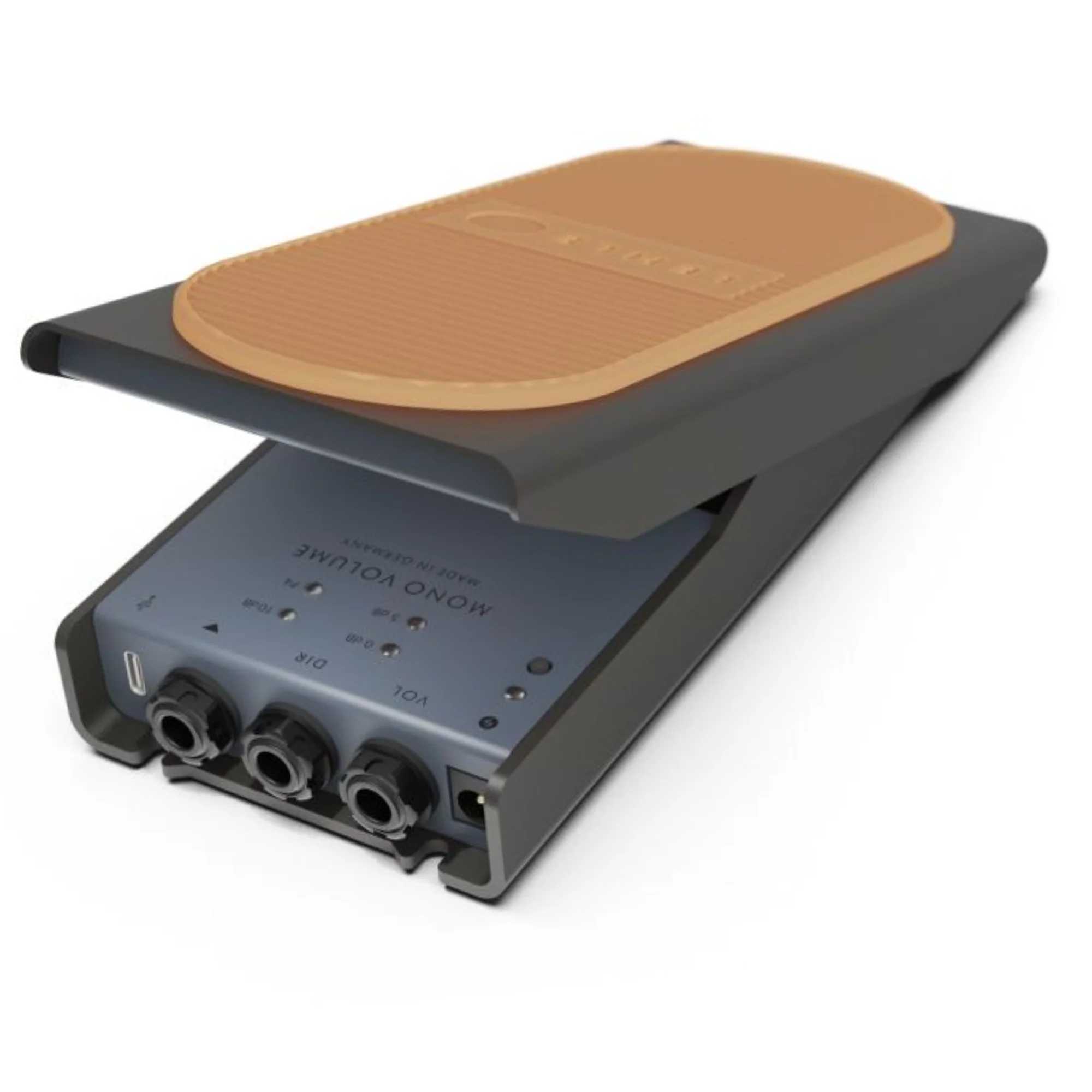

Lehle Compact Mono Volume S Pedal
The Lehle Compact Mono Volume S combines robust analog circuitry with digital precision, delivering an active volume control solution that eliminates the wear and degradation of traditional mechanical components. At its core is a magnet-based Hall sensor system—your foot never touches a potentiometer. Instead, a neodymium magnet moves across a Hall sensor, with the data processed in real time by a dedicated ARM Cortex processor. The result is a smooth, latency-free taper, designed to feel musical and precise underfoot.
Signal fidelity is maintained through an all-analog path that avoids common tone loss issues. The discrete Class-A input stage feeds a high-headroom preamp running internally at 30 volts, offering up to 120 dB of dynamic range. This ensures consistency in input and output impedance across the entire volume sweep, preserving the clarity and full frequency response of your instrument, even at lower settings. Whether you’re driving a high-output active pickup or a vintage single-coil, the signal remains punchy and uncolored.
Mechanically, the pedal’s shaft is housed in low-friction, high-performance polymer bearings, providing a silky and reliable response. A tension screw allows fine-tuning of pedal resistance—from feather-light to vintage stiff. A second buffered output is available for routing to tuners, recording gear, or parallel amps without any signal degradation.
Beyond the core volume function, the pedal includes a programmable boost feature. Engage up to +12 dB of gain with selectable presets at 0 dB, +5 dB, +10 dB, or the unique P4 setting for tonal emphasis in the toe-down position. For added integration, a USB-C port allows firmware updates, calibration, and MIDI communication to DAWs or amp sims, making the Lehle Compact Mono Volume S a fully integratable component of a modern rig.
- Analog signal path with digital control
- Magnet-based sensor for wear-free operation
- Discrete Class-A preamp and 30V internal voltage
- 120 dB dynamic range for full-spectrum clarity
- Programmable boost up to +12 dB
- Buffered secondary output for tuner or DAW
- USB-C port for MIDI, updates, and calibration
- Adjustable pedal tension for personalized response
